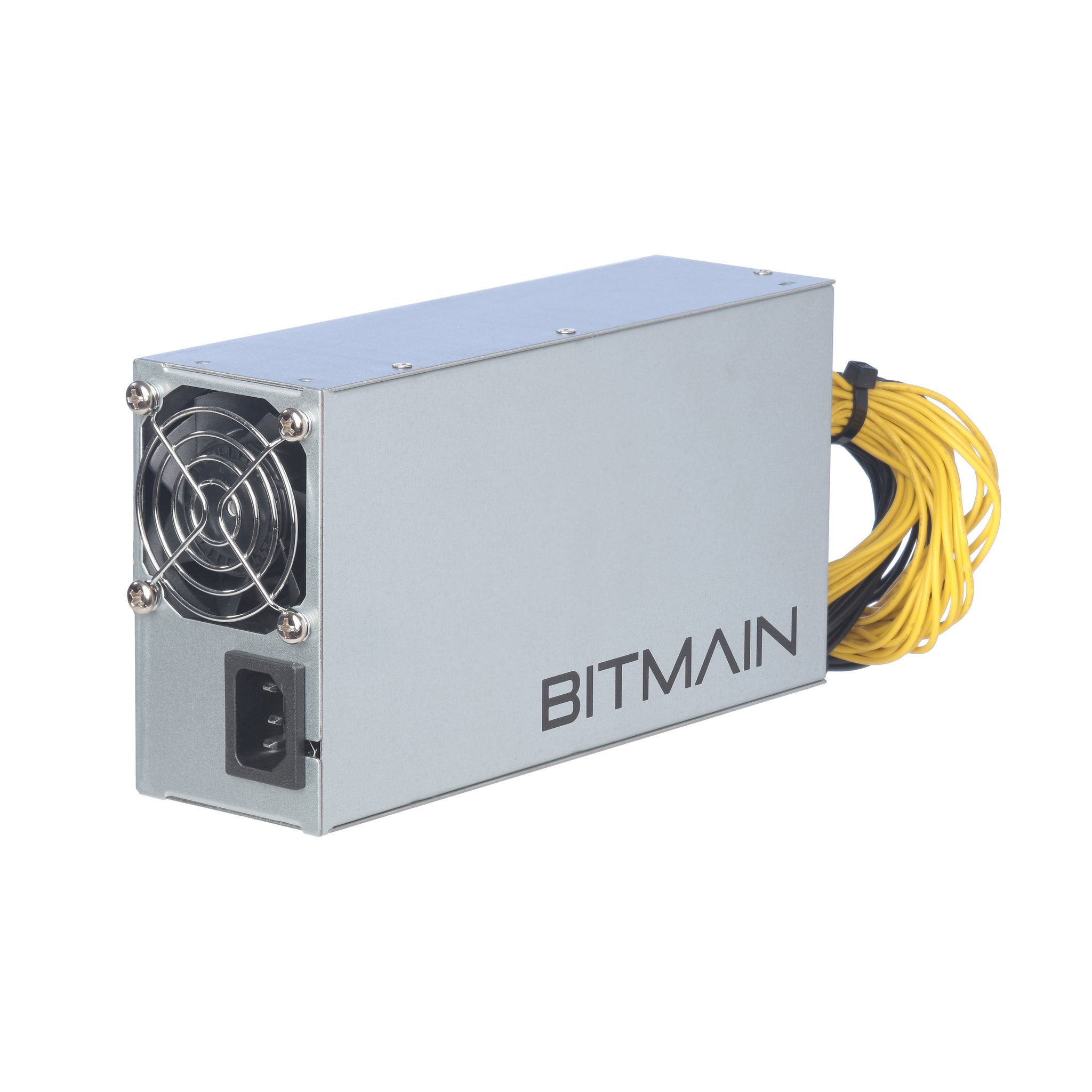

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Brand Name : Bitmain

Model Number : APW3++ Used

Certification : FCC

Place of Origin : China

MOQ : 1

Price : $30-50 Per Piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, PAYPAL, APPLE PAY, GOOGLE PAY, GC REAL TIME BANK TRANSFER, USDT

Supply Ability : 1000 pcs per week

Delivery Time : 2-3days

Packaging Details : carton ,wooden box

Output Power : 1600W

Input Voltage : 100-140 /200-240V AC

Output Voltage : 12.15V

Output Frequency : 47-63HZ

Material : Antminer PSUAluminium

Dimension : 220mm*108mm*62mm

Application : Antminer PSU

Package : Carton

Weight : 1.5KG

Contact Now

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Output

DC Voltage

12.0V

Rated Current(200-240V input)

150A

Rated Power (200-240V input)

1800W

Rated Current(100-140V input)

67A

Rated Power (100-140V input)

800W

Ripple & Noise

<1%

Voltage Accuracy

12.0-12.5V

Source Regulation

<1%

Load Regulation

<1%

Setup, Rise Time

<2S

Power off Protection Trip Time

>10mS

Input

Voltage Range

100-140/200-240 V AC

Frequency Range

50-60Hz

Power Factor

>0.99(full load)

Leakage Current

<1.5mA(220V 50Hz)

Protection

Low-voltage Input

80-89V AC

Output Short Circuit

Yes

Output Overcurrent

150-200A

Overheat Protection

Yes

Environment

Operating Temperature

-20-60℃

Operating Humidity

20%-90%RH(non condensing)

Altitude

< 2000m

Structure

Dimensions

206*110*62mm

Weight

2.0kg

Cooling Mode

force air cooling

Noise

43DB

Supply Ability

Supply Ability: 1000 Piece/Pieces per Week

Notes

1. Power consumption figures will vary with your PSU's efficiency, the ambient operating temperature and the accuracy of the power meter.

2. There are 3 PCI-e connectors for +12V DC input on each hashing board and all 3 need to be connected to the PSU for the hashboard to operate. Do not connect more than one PSU to the same hashing board!

4. Separate power supply to control board: there is one additional 6pin PCI-e connector on the IO board which must be connected to the PSU to get power. Be sure to power on the miner only after all the 10x PCIE connectors are connected to power supply.

3. Please select the correct address for shipping before you submit your order because the address cannot be changed after the order has been submitted.

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

Company Profile

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1
Packaging & Shipping

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

After Sales Service

Bitmain PSU Apw3++ Power Supply For Antminer S15 T15 S9i S9j Z9 L3+ L3++ A9 Z1

FAQ
Q1: How can I get your latest product and price list?
A1: Please provide your contact information (Such as Email, Whatsapp, Skype,Trademanager, Wechat) to us. We will contact you and send our quotation to you as soon as possible.
Q2: Who could provide the Warranty Service?
A2: If it is within the warranty period, the original factory of the miners will be responsible for it. If it is out of warranty,we will provide paid maintenance service.
Q3: How can you guarantee the quality of used/second hand machine?
A3: If the machine is used one which is out of warranty, we will test each one before shipment to ensure its function well. Test video could be provided.
Q4: How about the payment?
A4: We mainly support T/T bank transfer, Credit Card, Crypto payment like BTC, USDT, ETH also acceptable.
Q5: What is your shipping methods?
A5: We use UPS, DHL, FedEx, EMS, TNT or the shipping agent as your request.

Brand Model Hashrate Power Warranty
Antminer L7 9160 M 3425W Follow Bitmain
Z15E 200K+ 1350W Follow Bitmain
S19 95T 3250W 0-5 months random
S19 95T 3250W Follow Bitmain
S19 A 96T 3312w Follow Bitmain
S19 j Pro 104 T 3068W Follow Bitmain
S19 j Pro 104 T 3068W 0-5 month random
S19 pro 110T 3250W Follow Bitmain
S19 pro 110T 3250W No
L3+ 0.504G 800W No
S9 with PC 13.5 T 1300W No
S9j with PC 14.5 T 1350 W No
Aixin Aixin-A1 pro 23T 2200w Follow Aixin
Gold shell CK5 12000 G 2400 W 0-5 months
KD box 1.6T 205W Follow gold shell
ST-box 13.9kh/s 61W Follow gold shell
Avalon A1126 PRO 68T 3672W Follow Avalon
A1126 PRO 64T 3456W Follow Avalon
